Five door configurations
Select 6 mm soft-hinge doors with or without glazing, a 10 mm zigzag hard-hinge door, or 12 mm hard-hinge doors with or without glazing.
PRODUCT DETAIL
PVC Folding Door
PVC folding doors and accordion doors for bathrooms, kitchens, partitions and other indoor openings. Choose 6 mm soft-hinge, 10 mm zigzag hard-hinge or 12 mm hard-hinge systems, with glazed options, custom sizes, colours and OEM packing.
Three folding-door systems with clear hinge structures, standard dimensions, lock options and adjustable width combinations.
Request samples →

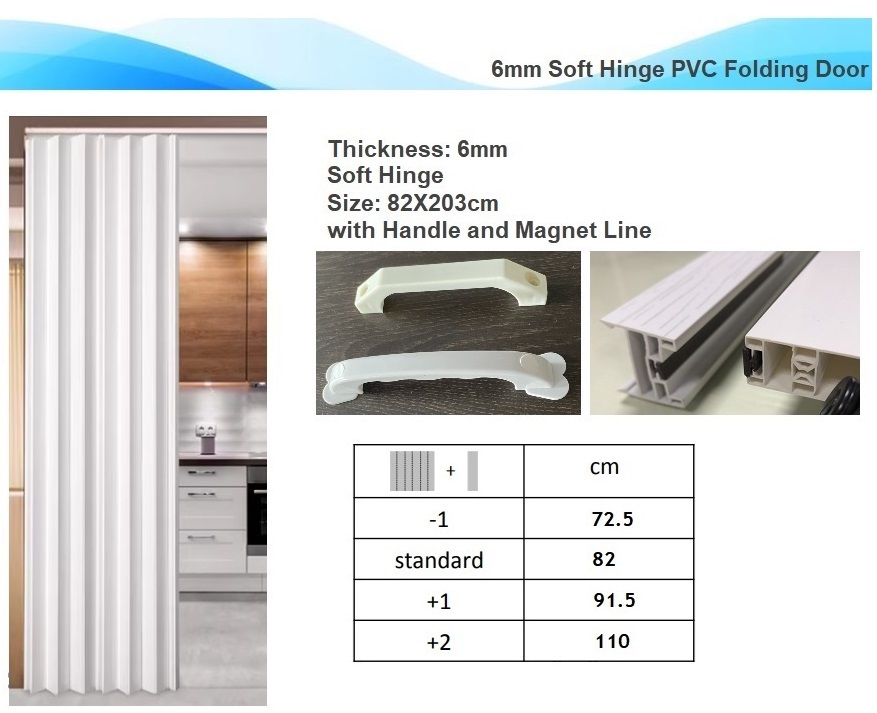

6 mm Soft-Hinge PVC Accordion Door
82 x 203 cm reference size with a 10 cm main panel, plastic handle and magnetic closure

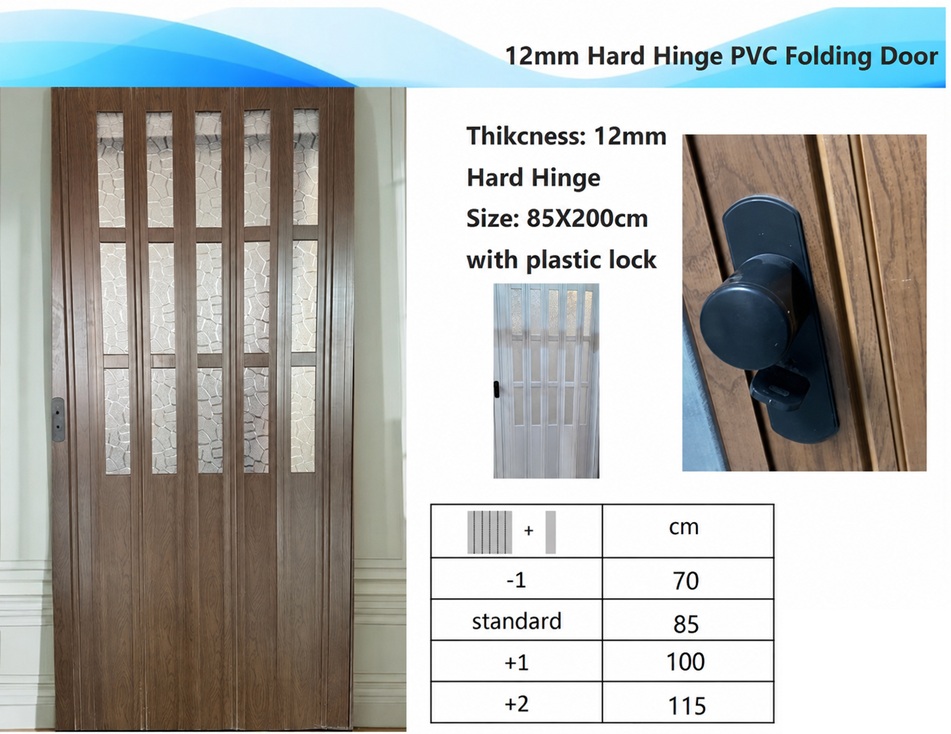

12 mm Hard-Hinge PVC Folding Door
100 x 210 cm reference size with a 15 cm main panel; glazed and non-glazed options

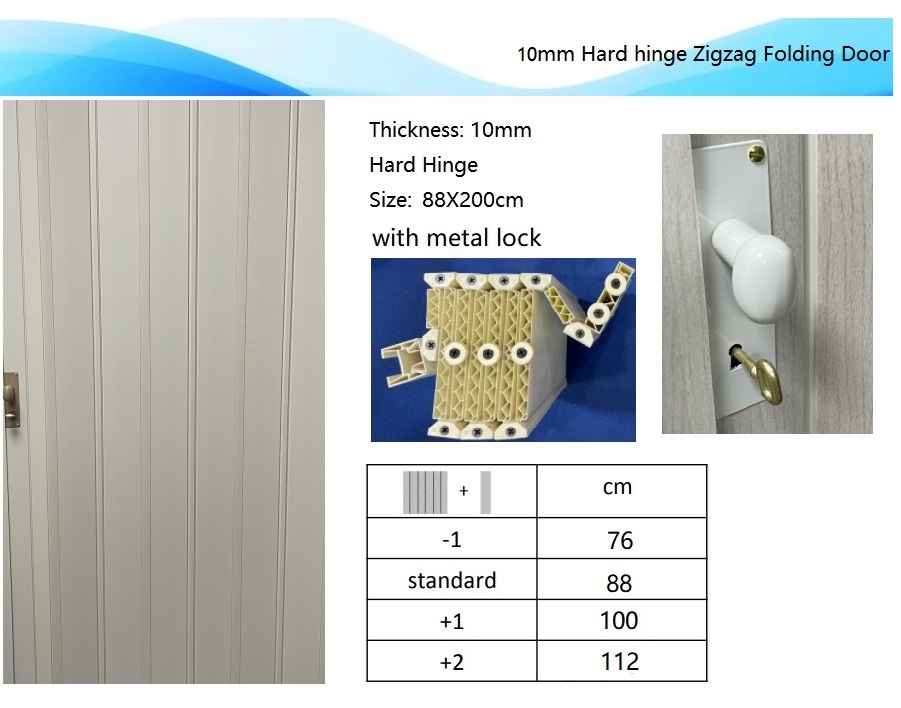

10 mm Zigzag Hard-Hinge Folding Door
100 x 220 cm reference size with a 12 cm main panel and plastic or metal hardware options
Waterproof indoor solution
The PVC profiles are waterproof, moisture resistant and easy to wipe clean, making them practical for bathrooms, kitchens, partitions and frequently used indoor spaces.
Custom and export ready
Single-opening and double-opening layouts, custom dimensions, colours, labels and cartons are available for OEM and wholesale orders.
MODEL SELECTION
Which PVC folding door should you choose?
The hinge structure, panel thickness, glazing and hardware should match the opening and the way the room will be used.
Soft hinge
A lightweight accordion-door option for compact indoor openings. Available with or without transparent panels.
Zigzag hard hinge
A thicker rigid-edge system with plastic or metal handle and lock choices.
Hard hinge
A more substantial 15 cm main-panel system, available in glazed and non-glazed configurations.
MEASUREMENT & INSTALLATION
A practical top-track installation
- Measure the opening.Take three width and three height measurements and use the smallest values. Check level, vertical alignment and diagonals.
- Fix and rotate the top track.Secure the centre first, rotate the track, slide in all ABS rollers, then turn it back and complete the top fixing.
- Install the side profiles.Fit the door jamb on one side and the magnetic closing profile on the opposite side with its TOP mark facing upward.
- Fit the handle and lubricate.Install the selected handle or lock, then apply a small amount of lubricant where the rollers contact the top track.
Typical tools: tape measure, pencil, level, drill, Phillips screwdriver, hacksaw or cutter, suitable screws and wall anchors, and a small amount of track lubricant.
PURCHASING INFORMATION
Specifications & supply
Standard export information for product selection and quotation. Custom requirements can be discussed with our team.
- 6 mm soft hinge, no glazing
- 10 cm main panel; 82 × 203 cm standard reference size
- 6 mm soft hinge, glazed
- 12 cm main panel; transparent-panel option with plastic handle and magnetic closure
- 10 mm zigzag hard hinge
- 12 cm main panel; 100 × 220 cm standard reference size; plastic or metal handle/lock options
- 12 mm hard hinge, no glazing
- 15 cm main panel; 100 × 210 cm standard reference size
- 12 mm hard hinge, glazed
- 15 cm main panel; transparent-panel option with lock or handle selected by model
- Main material
- PVC and calcium carbonate
- Surface finish
- Printing
- Colours
- Wood-grain and marble-pattern options; custom colours available
- Top track
- PVC or aluminium-alloy top track with ABS rollers
- Opening options
- Single opening or double opening; left/right opening can be adjusted on site
- Approximate set weight
- About 10–12.5 kg, depending on size and configuration
- Applications
- Indoor doors, bathrooms, kitchens and space-dividing partitions; not intended for outdoor use
- Packing
- One complete set with accessories and instructions in a carton; custom cartons, labels and barcodes available
- MOQ
- Normally one 20GP container and 100 sets per colour; smaller orders can be discussed
- Container loading reference
- 6 mm soft-hinge 82 × 203 cm: about 1,400 sets/20GP or 3,400 sets/40HQ; hard-hinge 100 × 210 cm: about 800 sets/20GP or 1,850 sets/40HQ
- Lead time
- Approximately one month after order confirmation
- Samples
- Samples are available; typical preparation time is one day after specification confirmation
- Customization
- OEM size, colour, brand, carton and label customization available
- Shipping
- FOB or CIF from Shanghai or Ningbo
- Main markets
- Middle East, Southeast Asia, South America, Europe and the Americas
COMMON QUESTIONS
Frequently asked questions
Is a PVC folding door suitable for a bathroom?
Yes. The PVC profiles are waterproof, moisture resistant and easy to clean, so the door is well suited to indoor bathrooms. Joints and surrounding construction should still be finished correctly for the wet-area conditions.
What is the difference between a soft-hinge and hard-hinge PVC folding door?
A 6 mm soft-hinge door is lighter and uses a flexible edge at each fold. The 10 mm and 12 mm hard-hinge systems are thicker and use rigid connecting edges for a more substantial feel.
How should I choose between 6 mm, 10 mm and 12 mm doors?
Choose according to the opening size, desired weight and feel, glazing requirement and hardware preference. Send the clear opening width and height, intended room and quantity, and our team will recommend a suitable system.
How do I measure the opening for a PVC accordion door?
Measure width at the top, middle and bottom and use the smallest result. Measure height at the left, centre and right from the finished floor and use the smallest result. Also check that the sides are vertical, the top is level and the two diagonals are close.
Can the height or width be trimmed on site?
Yes, the door can be adjusted on site within the limits of the selected model. For unusually tall openings, order a custom height; for wide openings, a double-opening layout is recommended.
Can the same door open from the left or right?
Yes. The opening direction can be adjusted on site, and both single-opening and double-opening layouts are available.
Can PVC folding doors include glazing or a lock?
Yes. Glazed options are available for selected 6 mm and 12 mm models. Handle, magnetic closure and plastic or metal lock options depend on the door configuration.
Can a PVC folding door be installed on tile, timber, concrete or plasterboard?
Yes, provided the top track and side profiles can be fixed securely to the substrate with suitable screws and anchors.
Does installation require a professional?
Not usually. One person can normally complete a standard installation in about 30 minutes with basic measuring, drilling and cutting tools, after reading the supplied instructions.
How do I clean a PVC folding door?
Wipe the profiles with a soft damp cloth and a mild cleaner. Avoid abrasive tools that could mark the printed surface.
What is the expected service life?
The normal-use reference is about five years. Actual service life depends on opening frequency, installation quality, maintenance and environmental conditions.
What is the MOQ for PVC folding doors?
The regular export order is one 20GP container with a minimum of about 100 sets per colour. Smaller quantities can be discussed.
How many PVC folding doors fit in a container?
As a reference, 6 mm soft-hinge doors at 82 × 203 cm load about 1,400 sets in a 20GP or 3,400 sets in a 40HQ. Hard-hinge doors at 100 × 210 cm load about 800 sets in a 20GP or 1,850 sets in a 40HQ. Final quantities depend on the exact model, size and packing.
Can I order samples and OEM packaging?
Yes. Samples can normally be prepared in one day after specification confirmation. Custom brands, cartons, labels and barcodes are available for production orders.
What is the production lead time?
Normal production takes approximately one month after the specification, artwork and order details are confirmed.
